HC0800800000G - Amphenol

Description: 8 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole, Kinked Pin

Download HC0800800000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HC0800800000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

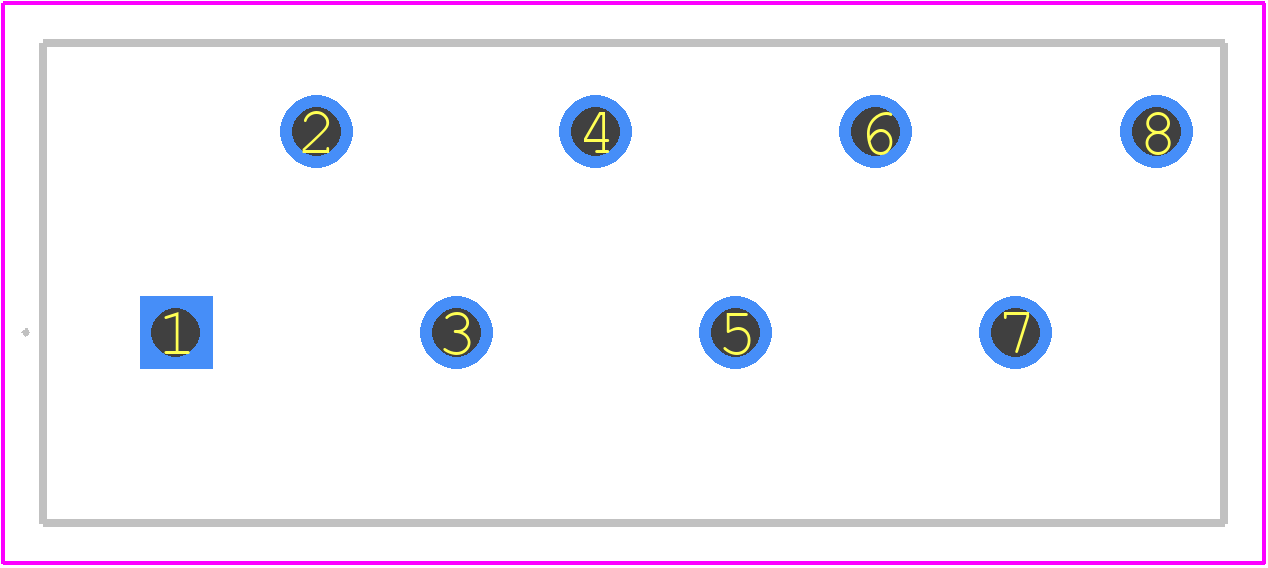

HC0800800000G - Amphenol PCB footprint - Other - Other - HC0800800000G-2
click to zoom
3D Models
HC0800800000G - Amphenol - 3D model - Other - HC0800800000G-2
click to zoom

HC0800800000G Details

  • Manufacturer Part Number:

    HC0800800000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    6 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CQC; CUL; TUV; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.518 mm2

  • Wire Gauge:

    20 AWG

HC0800800000G Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the HC0800800000G connector is 0.5-1.5 Nm (0.37-1.06 lbf-in) according to Amphenol's application notes.
  • Yes, the HC0800800000G connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 2, which includes sinusoidal vibration up to 10 Hz and random vibration up to 200 Hz.
  • The HC0800800000G connector is designed to be compatible with other connectors that meet the IEC 61076-2-080 standard. However, it's recommended to verify compatibility with specific connectors from other manufacturers before use.
  • The HC0800800000G connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F) according to the datasheet.
  • The HC0800800000G connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's recommended to consult Amphenol's environmental testing reports and application notes for specific guidance on using the connector in harsh environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HC0800800000G Overview

Use the download button to access the HC0800800000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HC080, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
