HC1V109M30030HA - SAMWHA

Description: Capacitor: electrolytic; SNAP-IN; 10000uF; 35VDC; Ø30x30mm; ±20%

Download HC1V109M30030HA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HC1V109M30030HA - SAMWHA - PCB symbol
click to zoom
PCB Footprints

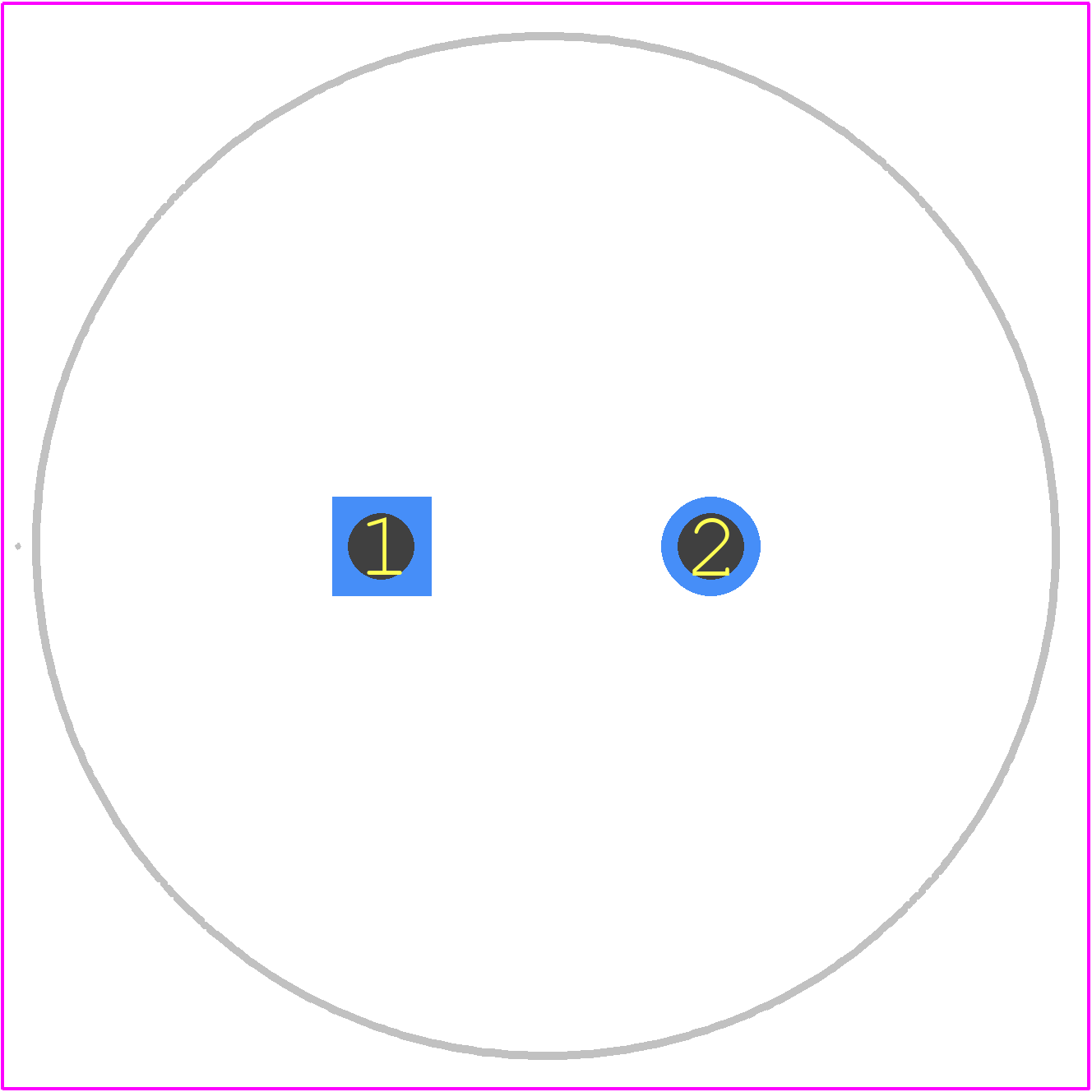

HC1V109M30030HA - SAMWHA PCB footprint - Other - Other - 30mm x 30mm
click to zoom
3D Models
HC1V109M30030HA - SAMWHA - 3D model - Other - 30mm x 30mm
click to zoom

HC1V109M30030HA Details

  • Manufacturer Part Number:

    HC1V109M30030HA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Samwha Electronics

  • YTEOL:

    7

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.77482 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    4580 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.39

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

HC1V109M30030HA Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Samwha Electronics' application note or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for surface-mount components.
  • The ESR of HC1V109M30030HA is not explicitly stated in the datasheet, but it can be estimated based on the capacitance and impedance values. A general rule of thumb is to use an ESR of 10-20 mΩ for ceramic capacitors in the same class as HC1V109M30030HA.
  • The derating curve is not provided in the datasheet, but it can be obtained by contacting Samwha Electronics' technical support team or by referring to similar capacitors from other manufacturers. A general guideline is to derate the capacitance by 2-3% per 10°C above the rated temperature.
  • While the datasheet does not explicitly state the vibration or shock resistance of HC1V109M30030HA, Samwha Electronics' capacitors are generally designed to meet the IEC 60068-2-6 standard for vibration and IEC 60068-2-27 standard for shock. However, it's recommended to consult with Samwha Electronics' technical support team for specific guidance.
  • The recommended soldering profile can be found in the Samwha Electronics' application note or by contacting their technical support team. A general guideline is to follow the IPC-J-STD-020 standard for soldering surface-mount components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HC1V109M30030HA Overview

Use the download button to access the HC1V109M30030HA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HC1V1, or try a keyword search, such as Ceramic Capacitors
