For optimal performance, it's recommended to follow a 4-layer PCB stackup with a dedicated ground plane, and to use thermal vias and a heat sink to dissipate heat. A minimum of 2 oz copper thickness is recommended for the current carrying paths.
To ensure accurate current measurement, it's essential to follow the recommended PCB layout, use a low-impedance path for the current conductor, and minimize the distance between the sensor and the current-carrying path. Additionally, calibrate the sensor according to the datasheet and consider using a shielded cable for the output signal.
The maximum allowable voltage drop across the sensor is typically 100 mV. A higher voltage drop can lead to reduced accuracy and increased temperature drift. It's essential to ensure that the voltage drop is within the specified limit to maintain the sensor's accuracy and reliability.
To protect the sensor from overcurrent and overvoltage conditions, it's recommended to use a fuse or a current limiter in series with the sensor, and to add overvoltage protection devices such as TVS diodes or zener diodes across the sensor's output.
The recommended frequency range for the output signal is typically up to 100 kHz. Operating the sensor outside of this range can lead to reduced accuracy, increased noise, and decreased bandwidth. It's essential to filter the output signal to remove high-frequency noise and ensure accurate current measurement.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HC5FW600-S Overview

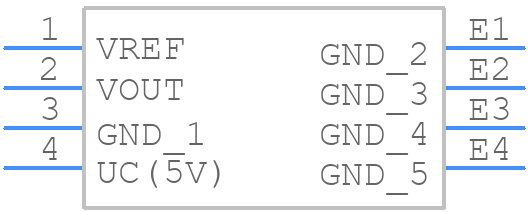

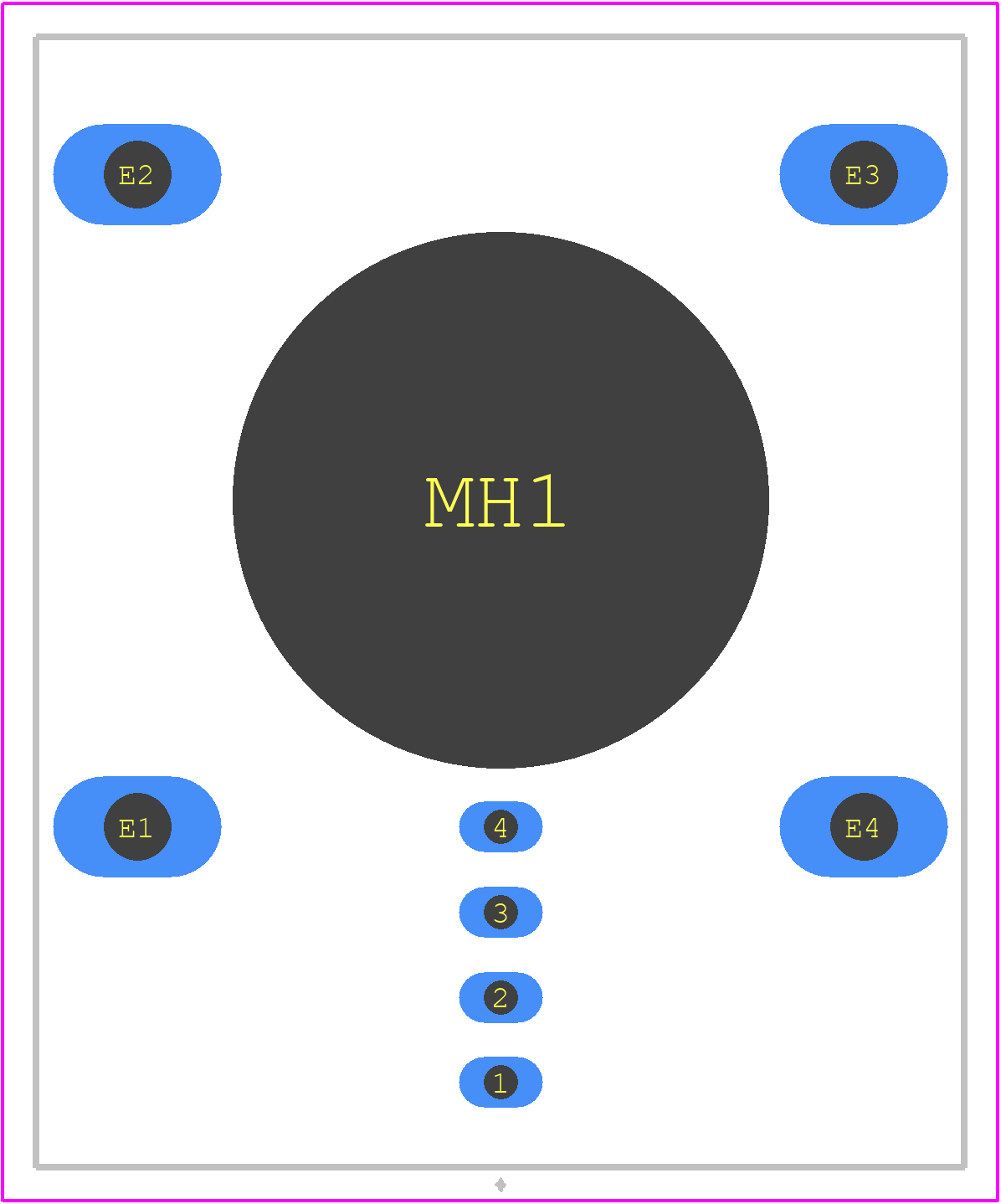

Use the download button to access the HC5FW600-S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HC5FW,
or try a keyword search, such as Other Sensors/Transducers
