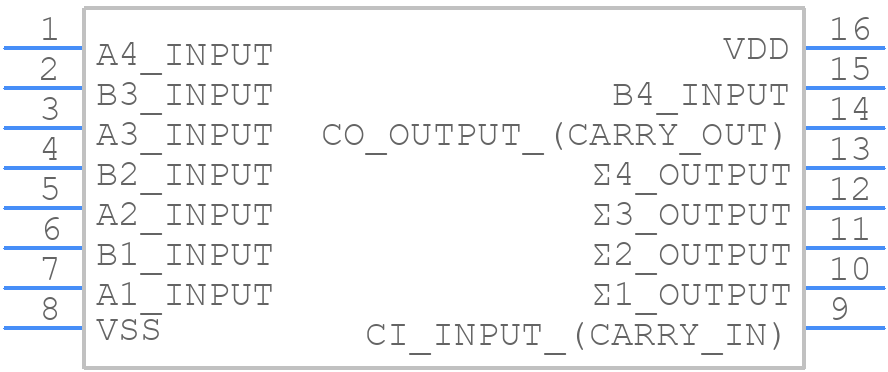

HCC4008BDG - STMicroelectronics

HCC4008BDG Details

• Manufacturer Part Number:

  HCC4008BDG

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

  DIL-16

• Manufacturer Package Code:

  DIL16 FP

• Country Of Origin:

  France

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  3

• Family:

  4000/14000/40000

• JESD-30 Code:

  R-CDIP-T16

• Length:

  20.32 mm

• Logic IC Type:

  ADDER/SUBTRACTOR

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  STRIP PACK

• Screening Level:

  EUROPEAN SPACE AGENCY

• Seated Height-Max:

  3.83 mm

• Supply Voltage-Max (Vsup):

  20 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Dose:

  100k Rad(Si) V

• Width:

  7.62 mm
