HCM498192000ABJT - CITIZEN FINEDEVICE

HCM498192000ABJT Frequently Asked Questions (FAQs)

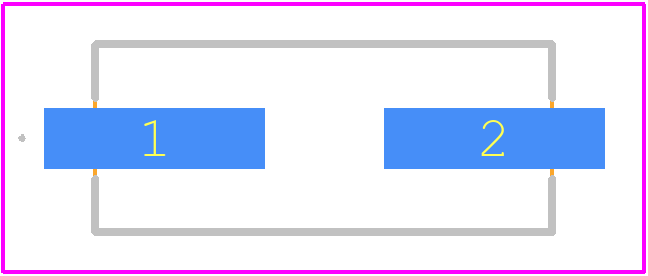

• What is the recommended PCB layout for optimal performance?
  Citizen Finedevice recommends a symmetrical PCB layout with a ground plane underneath the oscillator to minimize noise and radiation. A minimum of 10mil clearance around the device is also recommended.
• How do I handle the oscillator's start-up time?
  The HCM498192000ABJT has a typical start-up time of 2-5ms. Engineers should ensure that their system design allows for this start-up time before expecting a stable clock signal.
• What is the maximum operating temperature range for this oscillator?
  While the datasheet specifies an operating temperature range of -20°C to 70°C, Citizen Finedevice recommends derating the oscillator's frequency tolerance by 0.05ppm/°C for temperatures above 50°C.
• Can I use this oscillator in a high-vibration environment?
  The HCM498192000ABJT is designed to withstand vibrations up to 10G (10Hz-2kHz). However, engineers should consider additional vibration testing and/or vibration isolation measures for extreme environments.
• How do I ensure electromagnetic compatibility (EMC) with this oscillator?
  Citizen Finedevice recommends using a shielded enclosure and following good EMC design practices, such as keeping the oscillator away from noise sources and using a common-mode choke on the power supply lines.
