HCMS-2351 - Avago Technologies

Description: Dot Matrix Display Module 5 x 7 Yellow Serial In/Parallel Out 0.79" L x 0.33" W x 0.10" H (20.01mm x 8.43mm x 2.54mm)

Download HCMS-2351 Model

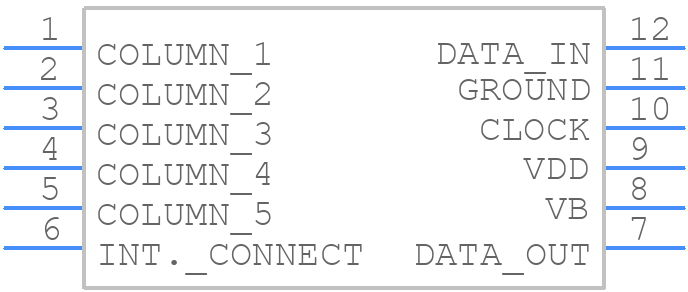

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HCMS-2351 - Avago Technologies PCB footprint - Other - Other - 20.01mm x 8.43mm x 2.54mm
click to zoom
3D Models
HCMS-2351 - Avago Technologies  - 3D model - Other - 20.01mm x 8.43mm x 2.54mm
click to zoom

HCMS-2351 Details

  • Manufacturer Part Number:

    HCMS-2351

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GLASS CERAMIC, DIP-12

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5.7

  • Additional Feature:

    WITH SHIFT REGISTER/DRIVER

  • Color:

    YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    COMPLEX

  • Display Height:

    4.87 mm

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    5 X 7 DOT MATRIX LED DISPLAY

  • Peak Wavelength:

    585 nm
