HCMS-2905 - Avago Technologies

Description: Dot Matrix Display Module 5 x 7 Red Serial 0.70" L x 0.40" W x 0.20" H (17.80mm x 10.20mm x 5.10mm)

Download HCMS-2905 Model

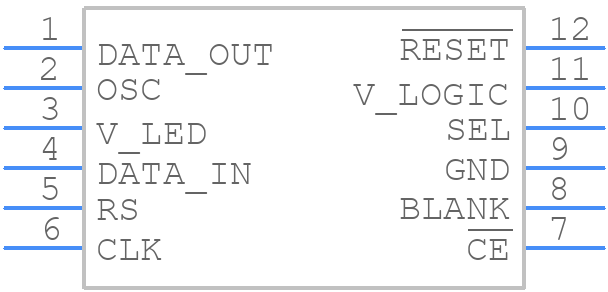

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

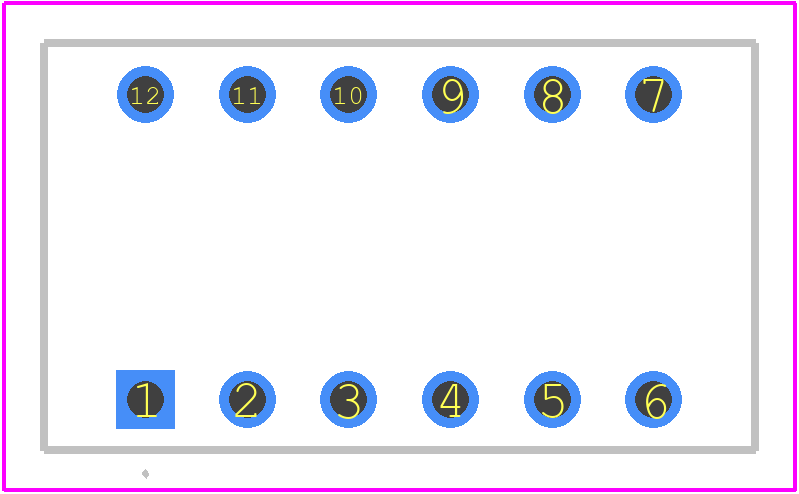

HCMS-2905 - Avago Technologies PCB footprint - Other - Other - HCMS-2905-1
click to zoom
3D Models
HCMS-2905 - Avago Technologies  - 3D model - Other - HCMS-2905-1
click to zoom

HCMS-2905 Details

  • Manufacturer Part Number:

    HCMS-2905

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5.7

  • Additional Feature:

    TTL COMPATIBLE

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMPLEX

  • Display Height:

    3.71 mm

  • Forward Voltage-Max:

    5.5 V

  • JESD-609 Code:

    e2

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    5 X 7 DOT MATRIX LED DISPLAY

  • Peak Wavelength:

    645 nm

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

HCMS-2905 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Ensure good thermal design, including a heat sink and thermal interface material. Operate within the recommended temperature range (–40°C to 125°C) and follow the recommended power sequencing.
  • Critical timing parameters include clock frequency, clock duty cycle, and setup/hold times. Ensure these parameters are met by following the recommended clocking scheme and signal integrity guidelines.
  • Use a logic analyzer or oscilloscope to capture and analyze the signals. Check the power supply, clock, and reset signals for noise or glitches. Verify that the device is properly configured and that the firmware is correct.
  • Power up the device in the following sequence: VDD, VDDQ, and then VREF. Ramp up the voltage slowly (e.g., 1-2 ms) to prevent damage or latch-up.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCMS-2905 Overview

Use the download button to access the HCMS-2905 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCMS-, or try a keyword search, such as LED Displays

Parts related to HCMS-2905

Showing 0 results

HCMS-2905 Alternates

Showing results

Image Part Number Model
Part Image HCMS-2905 Broadcom Limited

4-Character, Red, 3.71mm

Part Image HCMS-2905 Hewlett Packard Co

4-Character, Red, 3.81mm

Part Image HCMS-2905 Agilent Technologies Inc

4-Character, Red, 3.71mm
