HCMS-3962 - Avago Technologies

Description: LED Displays & Accessories Red 626nm 1x4 Alphanumeric

Download HCMS-3962 Model

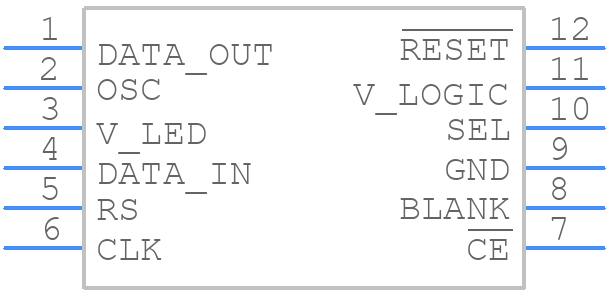

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

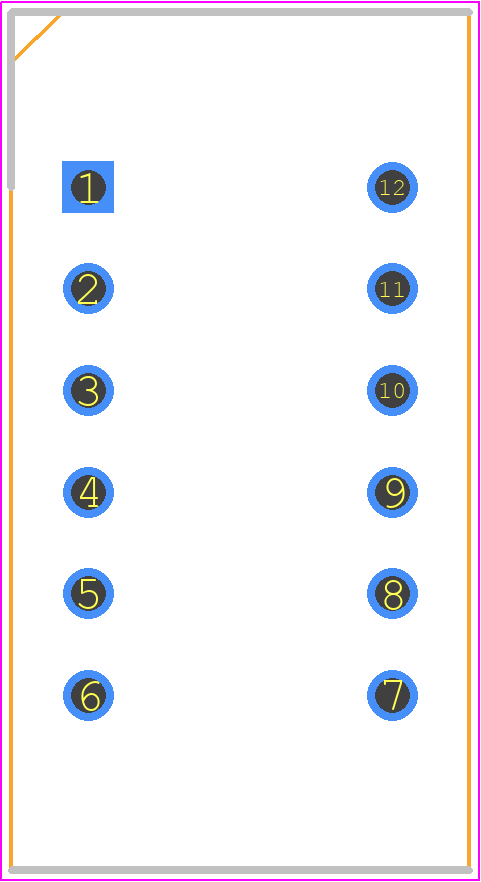

HCMS-3962 - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 21.46mm x 11.43mm x 5.31mm
click to zoom

HCMS-3962 Details

  • Manufacturer Part Number:

    HCMS-3962

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6.1

  • Additional Feature:

    TTL COMPATIBLE

  • Color:

    RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMPLEX

  • Display Height:

    4.57 mm

  • Forward Voltage-Max:

    5.5 V

  • JESD-609 Code:

    e2

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    5 X 7 DOT MATRIX LED DISPLAY

  • Peak Wavelength:

    641 nm

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

HCMS-3962 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a heat sink with a thermal resistance of less than 10°C/W to keep the junction temperature below 125°C. Ensure good airflow and avoid blocking the airflow around the device.
  • Power up the device in the following sequence: VCC, then AVCC, then DVCC. Ensure that VCC is stable before applying AVCC and DVCC.
  • Use a logic analyzer or oscilloscope to verify the I2C clock and data signals. Check for proper termination, signal integrity, and clock stretching. Ensure that the I2C bus is not overloaded.
  • The maximum current rating for the output drivers is 20mA per pin. Ensure that the total current drawn from the device does not exceed the recommended maximum current rating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCMS-3962 Overview

Use the download button to access the HCMS-3962 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HCMS-, or try a keyword search, such as LED Displays

Parts related to HCMS-3962

Showing 0 results

HCMS-3962 Alternates

Showing results

Image Part Number Model
Part Image HCMS-3962 Agilent Technologies Inc

4-Character, Red, 4.57mm
