HCNW2201-300E footprint, schematic symbol and 3D model by Avago Technologies

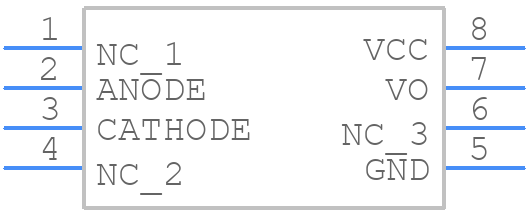

Symbol

PCB Footprints

3D Models

HCNW2201-300E Details

Manufacturer Part Number:
HCNW2201-300E
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
0.400 INCH, ROHS COMPLIANT, WIDE BODY, SURFACE MOUNT, DIP-8
Reach Compliance Code:
Compliant
Country Of Origin:
Thailand
HTS Code:
8541.40.80.00
Manufacturer:
Avago Technologies
YTEOL:
7
Additional Feature:
CMOS COMPATIBLE, UL RECOGNIZED
Configuration:
SINGLE
Data Rate-Nom:
5 MBps
Forward Current-Max:
0.01 A
Isolation Voltage-Max:
5000 V
JESD-609 Code:
e3
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
0.025 A
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Supply Voltage-Min:
4.5 V
Terminal Finish:
MATTE TIN

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Refer to the application note AN2131 for more details.
The HCNW2201-300E requires a 3.3V power supply and a bias current of 300mA. Ensure the voltage regulator is stable and can provide the required current. Also, use a 10uF capacitor for power supply decoupling.
The HCNW2201-300E is rated for operation from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
Use a spectrum analyzer to check the output spectrum and ensure it meets the required specifications. Check the power supply voltage and current, and verify the PCB layout and component values. Refer to the troubleshooting guide in the datasheet for more information.
While the HCNW2201-300E is designed for Wi-Fi applications, it can be used in other RF applications with frequencies between 2.4GHz and 2.5GHz. However, ensure the device is properly characterized and tested for the specific application.

Community Provided

System Verified

Community Approved

Use the download button to access the HCNW2201-300E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HCNW2, or try a keyword search, such as Optocoupler
