HCNW4562#500 - Avago Technologies

Description: The HCPL-4562 and HCNW4562 optocouplers provide wide band­width isolation for analog signals. They are ideal for video isolation when combined with their application circuit (Figure4). High linearity and low phase shift are achieved through an AlGaAs LED combined with a high speed detector. These single channel optocouplers are avail­able in 8-Pin DIP and Widebody package configurations.

Download HCNW4562#500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

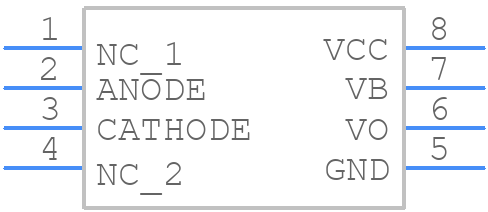

HCNW4562#500 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HCNW4562#500 - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8_400 mil-wide body
click to zoom
3D Models
HCNW4562#500 - Avago Technologies - 3D model - Dual-In-Line Packages - DIP-8_400 mil-wide body
click to zoom

HCNW4562#500 Details

  • Manufacturer Part Number:

    HCNW4562#500

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.400 INCH, WIDEBODY, DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LINEAR IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCNW4562#500 Overview

Use the download button to access the HCNW4562#500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCNW4, or try a keyword search, such as Optocoupler
