A good PCB layout for the HCPL-0300-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input and output connections.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range.
The HCPL-0300-500E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and installation. This includes using an ESD wrist strap, ESD mat, and ESD-protected packaging.
Yes, the HCPL-0300-500E is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly secured to the PCB and that the PCB is securely attached to the system to prevent mechanical stress.
To troubleshoot issues with the HCPL-0300-500E, start by checking the input and output connections, ensuring that they are secure and not damaged. Then, verify that the power supply voltage is within the recommended range. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-0300-500E Overview

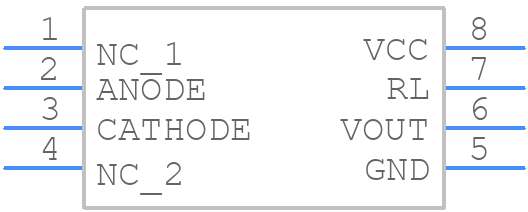

Use the download button to access the HCPL-0300-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
