A good PCB layout for HCPL-0370-500E involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a shielded cable for the input signal.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the device within its recommended operating temperature range.
The recommended input signal amplitude for HCPL-0370-500E is typically between 10-20 mA. However, it's essential to consult the datasheet and application notes for specific guidance on input signal amplitude and other parameters.
Yes, HCPL-0370-500E is designed to operate in high-vibration environments. However, it's crucial to ensure that the device is properly mounted and secured to prevent mechanical stress and damage.
To troubleshoot issues with HCPL-0370-500E, start by checking the input signal amplitude and frequency, ensuring that they are within the recommended specifications. Also, verify that the device is properly powered and that the output is not overloaded. If issues persist, consult the datasheet and application notes or contact Broadcom Limited's technical support.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-0370-500E Overview

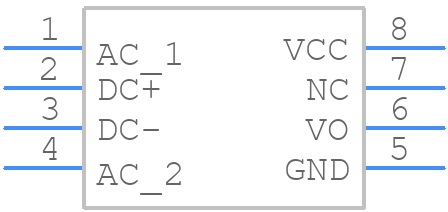

Use the download button to access the HCPL-0370-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
