A good PCB layout for HCPL-0453-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce noise and electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
Common failure modes of HCPL-0453-500E include overvoltage, overcurrent, and electrostatic discharge (ESD). To mitigate these, use voltage regulators, current limiters, and ESD protection circuits, and follow proper handling and storage procedures.
Yes, HCPL-0453-500E can be used in high-frequency applications, but its bandwidth is limited to 10 MHz. Above this frequency, the device's performance may degrade, and signal attenuation and distortion may occur.
To troubleshoot issues with HCPL-0453-500E, check the input voltage, output load, and PCB layout for any anomalies or non-compliance with the datasheet specifications. Use oscilloscopes and logic analyzers to debug the signal waveforms and timing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-0453-500E Overview

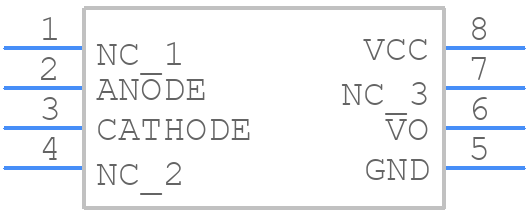

Use the download button to access the HCPL-0453-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
