Broadcom recommends a PCB layout with a minimum of 10 mils (0.25 mm) clearance between the HCPL-050L and other components, and a ground plane underneath the device to reduce electromagnetic interference (EMI). Additionally, the input and output pins should be routed away from each other to minimize crosstalk.
To ensure reliable operation of HCPL-050L in high-temperature environments, it is recommended to derate the device's power consumption and ensure good thermal management. This can be achieved by using a heat sink, reducing the power supply voltage, and providing adequate airflow around the device.
The maximum allowable voltage on the input pins of HCPL-050L is 1.5 V, which is the maximum rating for the LED input. Exceeding this voltage can damage the device.
Yes, HCPL-050L can be used in a circuit with a different supply voltage, but the device's performance may be affected. The recommended supply voltage range is 4.5 V to 5.5 V, and operation outside this range may result in reduced speed, increased power consumption, or other performance degradation.
To troubleshoot issues with HCPL-050L, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the input signals for proper logic levels and ensure that the input pins are not overloaded. Use an oscilloscope to verify the output signal and check for any signs of distortion or ringing. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-050L Overview

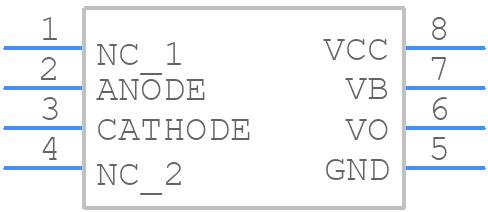

Use the download button to access the HCPL-050L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
