A good PCB layout for HCPL-0600 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the junction temperature below 125°C.
The recommended input voltage range for HCPL-0600 is 3.15V to 5.5V. Operating the device outside this range may affect its performance and reliability.
To troubleshoot issues with the HCPL-0600, check the input voltage, input signal integrity, and output load conditions. Verify that the device is properly powered, and the input signal meets the recommended specifications. Also, check for any signs of overheating or physical damage.
Yes, the HCPL-0600 can be used in high-frequency applications, but it's essential to consider the device's bandwidth and rise/fall times. The HCPL-0600 has a bandwidth of 10 MHz, making it suitable for applications up to 1 MHz. For higher frequencies, consider using a faster optocoupler or a different isolation technology.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-0600 Overview

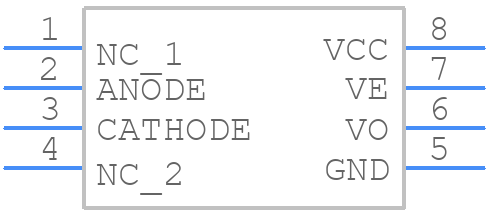

Use the download button to access the HCPL-0600 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
