A good PCB layout for HCPL-060L-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and avoid exceeding the maximum junction temperature (Tj) of 125°C. Additionally, consider using a heat sink or thermal interface material to reduce thermal resistance.
The HCPL-060L-500E has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
The HCPL-060L-500E is rated for up to 500Vrms of isolation voltage, but it's essential to ensure that the device is used within its specified voltage ratings and that proper safety precautions are taken to prevent electrical shock or other hazards.
To troubleshoot issues with the HCPL-060L-500E, start by checking the input and output signals, ensuring that the device is properly powered, and verifying that the input signal is within the specified range. Use an oscilloscope to check for signal integrity and noise, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-060L-500E Overview

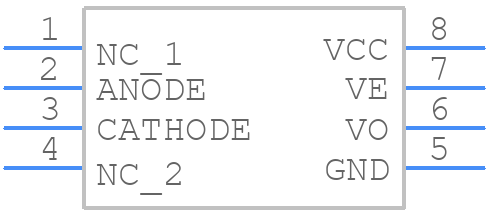

Use the download button to access the HCPL-060L-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
