A good PCB layout for HCPL-0701 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a 0.1uF capacitor between VCC and GND pins to filter out noise.
To ensure reliable operation of HCPL-0701 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the device away from heat sources.
The maximum allowable voltage on the input pins of HCPL-0701 is 30V, but it's recommended to keep the input voltage below 20V to ensure reliable operation and prevent damage to the device.
While HCPL-0701 is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 25 kHz. However, the device's performance may degrade at higher frequencies, and additional filtering or shielding may be required to ensure reliable operation.
To troubleshoot issues with HCPL-0701, start by verifying the input voltage and frequency, checking for proper PCB layout and component placement, and ensuring that the device is properly powered. If issues persist, try replacing the device or consulting the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-0701 Overview

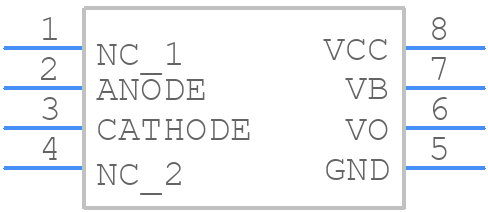

Use the download button to access the HCPL-0701 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
