A good PCB layout for HCPL-070L-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the output circuitry away from high-voltage areas.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Additionally, consider using a thermocouple or temperature sensor to monitor the device temperature.
The HCPL-070L-000E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding touching the pins or leads.
The HCPL-070L-000E is rated for up to 1 kV of isolation voltage, making it suitable for many high-voltage applications. However, it's essential to ensure that the device is properly configured and that the input and output circuits are designed to handle the high voltage. Additionally, consider using external protection devices, such as TVS diodes, to protect the device from voltage transients.
To troubleshoot issues with the HCPL-070L-000E, start by verifying the input signal and power supply voltage. Check for proper PCB layout and assembly, and ensure that the device is properly configured. Use an oscilloscope to monitor the input and output signals, and consider using a logic analyzer to debug the digital signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-070L-000E Overview

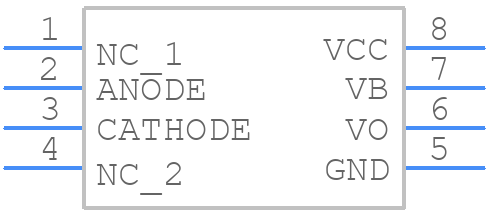

Use the download button to access the HCPL-070L-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
