A good PCB layout for HCPL-0710-000E involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce noise and electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range.
Common failure modes of HCPL-0710-000E include overvoltage, overcurrent, and excessive temperature. To mitigate these, ensure proper voltage regulation, use current-limiting resistors, and implement thermal protection circuits.
Yes, HCPL-0710-000E can be used in high-frequency applications, but its bandwidth is limited to around 10 MHz. Above this frequency, the device's performance may degrade, and signal attenuation may occur.
To troubleshoot issues with HCPL-0710-000E, start by checking the input voltage, output current, and temperature. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to analyze the input and output waveforms, and consult the datasheet for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-0710-000E Overview

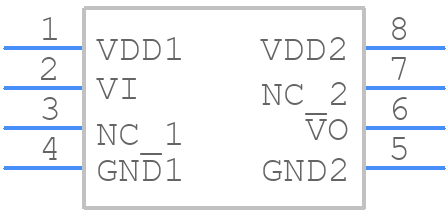

Use the download button to access the HCPL-0710-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
