HCPL-073A-000E - Avago Technologies

Description: Broadcom HCPL-073A-000E DC Input Photodetector Output Dual Optocoupler, Surface Mount, 8-Pin SOIC

Download HCPL-073A-000E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

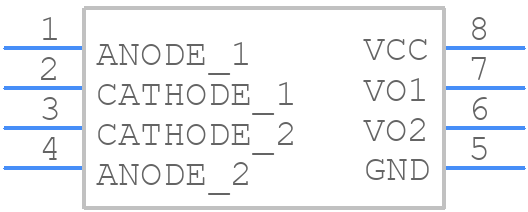

HCPL-073A-000E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HCPL-073A-000E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 Package
click to zoom
3D Models
HCPL-073A-000E - Avago Technologies - 3D model - Small Outline Packages - SO-8 Package
click to zoom

HCPL-073A-000E Details

  • Manufacturer Part Number:

    HCPL-073A-000E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    8

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    800%

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.115 W

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

HCPL-073A-000E Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL-073A-000E involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce noise and electromagnetic interference (EMI).
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
  • The recommended input signal conditioning for HCPL-073A-000E involves using a series resistor and capacitor to filter out high-frequency noise and ensure a clean input signal.
  • To troubleshoot common issues with HCPL-073A-000E, check the input signal quality, ensure proper power supply decoupling, and verify that the device is operated within its specified voltage and temperature ranges.
  • Yes, HCPL-073A-000E can be used in safety-critical applications. It meets the requirements of IEC 60747-5-5 and is certified to UL 1577 and IEC 62368-1 safety standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCPL-073A-000E Overview

Use the download button to access the HCPL-073A-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-, or try a keyword search, such as Optocoupler
