A good PCB layout for HCPL-073A involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce noise and electromagnetic interference (EMI).
To ensure reliable operation of HCPL-073A in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range.
Common failure modes of HCPL-073A include overvoltage, overcurrent, and excessive temperature. To mitigate these, ensure proper voltage regulation, use current-limiting resistors, and implement thermal protection circuits.
Yes, HCPL-073A can be used in high-frequency applications, but its bandwidth is limited to around 10 MHz. Above this frequency, signal attenuation and distortion may occur. To minimize these effects, use proper filtering and impedance matching techniques.
To troubleshoot issues with HCPL-073A, start by verifying the input voltage and current, checking for proper PCB layout and thermal management, and ensuring that the device is operated within its recommended specifications. Use oscilloscopes and logic analyzers to debug the signal waveforms and timing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-073A Overview

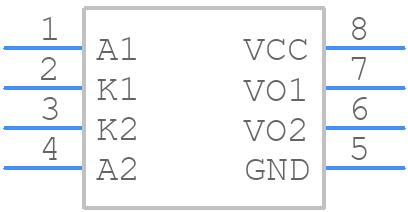

Use the download button to access the HCPL-073A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
