A good PCB layout for HCPL-073L involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce noise and electromagnetic interference (EMI).
To ensure reliable operation of HCPL-073L in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range.
Common failure modes of HCPL-073L include overvoltage, overcurrent, and electrostatic discharge (ESD). To mitigate these, use proper voltage regulation, current limiting, and ESD protection, and follow recommended handling and storage procedures.
Yes, HCPL-073L can be used in high-frequency applications, but its bandwidth is limited to around 10 MHz. Above this frequency, the device's performance may degrade, and signal attenuation may occur.
To troubleshoot issues with HCPL-073L, start by checking the input voltage, output load, and PCB layout. Verify that the device is operated within its recommended specifications, and check for signs of overheating or physical damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-073L Overview

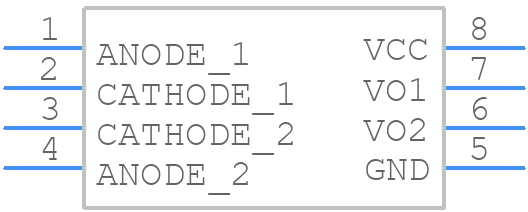

Use the download button to access the HCPL-073L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
