A good PCB layout for HCPL-1930 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a 0.1uF capacitor between VCC and GND pins to filter out noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (−40°C to 100°C) and consider the derating of the device's current rating at higher temperatures. Additionally, ensure good thermal management, such as using a heat sink or thermal pad, to keep the junction temperature within the recommended range.
The HCPL-1930 is a logic-compatible input device, so it's recommended to use a signal conditioning circuit that provides a clean, logic-level signal (e.g., 0-5V) to the input pins. A series resistor (e.g., 1kΩ) and a capacitor (e.g., 10nF) can be used to filter out noise and ensure signal integrity.
The HCPL-1930 is rated for up to 3.75kV of isolation voltage, making it suitable for high-voltage applications. However, it's essential to ensure that the device is used within its recommended operating conditions and that the isolation voltage rating is not exceeded.
To troubleshoot issues with the HCPL-1930, start by verifying the input signal integrity, checking for proper power supply voltage, and ensuring that the device is operated within its recommended temperature range. Use an oscilloscope to inspect the input and output signals, and consult the datasheet for specific troubleshooting guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-1930#300 Overview

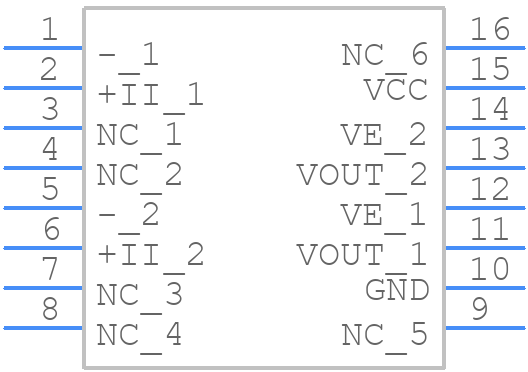

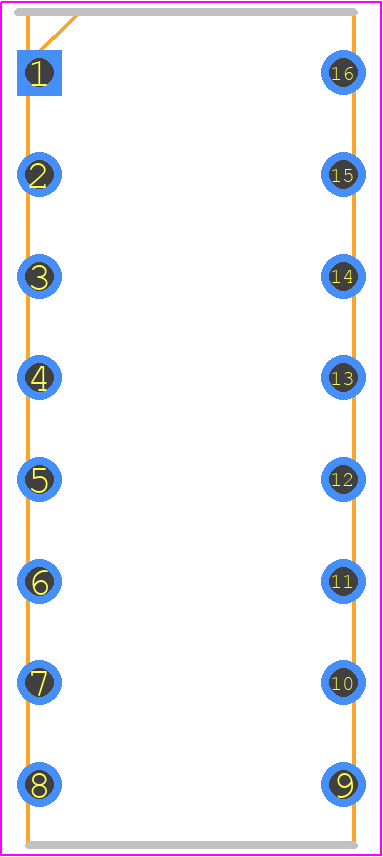

Use the download button to access the HCPL-1930#300 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
