The recommended PCB layout for HCPL-2201 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the input and output traces. It's also recommended to use a 0.1uF bypass capacitor between VCC and GND pins.
To ensure reliable operation of HCPL-2201 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range (−40°C to 100°C).
The maximum allowable common-mode transient immunity for HCPL-2201 is 10 kV/μs, which is specified in the datasheet. Exceeding this limit can compromise the device's performance and reliability.
While HCPL-2201 is primarily designed for low-frequency applications, it can be used for high-frequency applications up to 25 kHz. However, the device's performance may degrade at higher frequencies, and additional filtering or signal conditioning may be required.
To troubleshoot HCPL-2201, start by verifying the power supply voltage, checking for proper connections and PCB layout, and ensuring that the input and output signals are within the recommended specifications. If the issue persists, consult the datasheet and application notes or contact Broadcom's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-2201 Overview

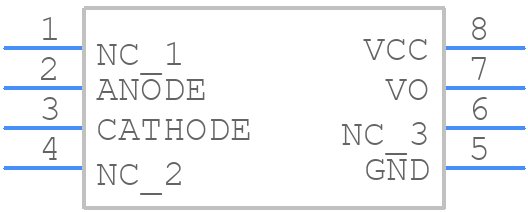

Use the download button to access the HCPL-2201 schematic symbol, PCB footprint, and 3D model.
