A good PCB layout for HCPL-2232-300E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the cable away from noise sources.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Additionally, it's recommended to derate the device's current rating at high temperatures.
The HCPL-2232-300E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap or mat, storing the devices in anti-static packaging, and avoiding touching the device pins during handling.
The HCPL-2232-300E is rated for up to 3.75 kVrms of isolation voltage, but it's essential to ensure that the device is used within its specified voltage ratings. Exceeding the recommended voltage can lead to device failure or reduced lifespan.
To troubleshoot issues with the HCPL-2232-300E, start by checking the input and output signals using an oscilloscope. Verify that the input signal is within the specified range and that the output signal is not distorted. Also, check the power supply voltage and ensure that it's within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-2232-300E Overview

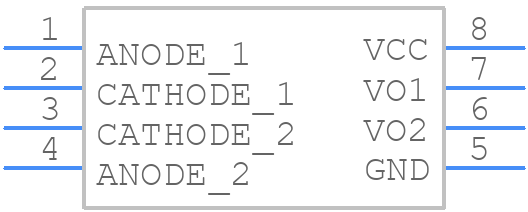

Use the download button to access the HCPL-2232-300E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
