A good PCB layout for HCPL-2232 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input and output connections.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (−40°C to 100°C) and consider the derating of the device's current transfer ratio (CTR) with temperature. Additionally, ensure proper thermal management, such as using a heat sink or thermal pad, to prevent overheating.
The recommended input voltage range for the HCPL-2232 is 3.15 V to 20 V, with a typical operating voltage of 5 V or 12 V. Operating outside this range may affect the device's performance and reliability.
To minimize EMI when using the HCPL-2232, use a shielded cable for the input and output connections, keep the input and output circuits separate, and consider using EMI filters or shielding on the PCB. Additionally, follow proper PCB layout and grounding techniques to reduce EMI susceptibility.
The maximum allowable current for the HCPL-2232 is 20 mA. Exceeding this current may cause the device to overheat or fail. Ensure that the output current is within the recommended range to maintain device reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-2232 Overview

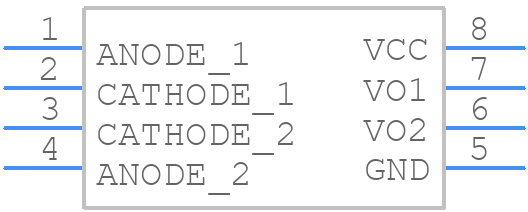

Use the download button to access the HCPL-2232 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
