A good PCB layout for HCPL-2430-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the cable away from noise sources.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Additionally, it's recommended to derate the device's current rating at high temperatures.
The recommended input signal amplitude for HCPL-2430-500E is typically between 10-20 mA, and the frequency range is up to 10 MHz. However, the optimal input signal amplitude and frequency may vary depending on the specific application, so it's recommended to consult the datasheet and application notes for more information.
To protect the HCPL-2430-500E from EOS, it's recommended to use input protection circuits, such as TVS diodes or zener diodes, to clamp the input voltage and current. Additionally, it's essential to follow proper handling and storage procedures to prevent damage from electrostatic discharge (ESD).
The typical propagation delay of the HCPL-2430-500E is around 100-200 ns, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information on propagation delay and other timing characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-2430-500E Overview

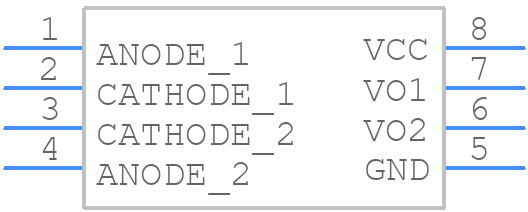

Use the download button to access the HCPL-2430-500E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
