Broadcom recommends a PCB layout with a solid ground plane, minimal track length, and a 50-ohm transmission line for the output stage to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
The maximum allowable voltage on the VCC pin of HCPL-2531-560E is 5.5V. Exceeding this voltage can cause permanent damage to the device.
Yes, HCPL-2531-560E is designed for use in galvanically isolated interfaces. The device provides electrical isolation between the input and output stages, making it suitable for applications requiring high-voltage isolation.
To troubleshoot issues with HCPL-2531-560E, start by verifying the input voltage and signal integrity. Check for proper PCB layout, thermal management, and component selection. Use an oscilloscope to monitor the output stage and verify that it is within the specified voltage range. Consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-2531-560E Overview

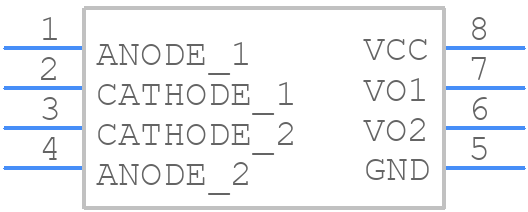

Use the download button to access the HCPL-2531-560E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
