Description:15 kV/µs minimum Common Mode Rejection (CMR) at
VCM= 1 kV for HCNW2611, HCPL-2611, HCPL-4661,
HCPL-0611, HCPL-0661
High speed: 10 MBd typical
LSTTL/TTL compatible
Low input current capability: 5 mA
Guaranteed AC and DC performance over industrial
temperature: –40°C to +85°C
Available in 8-Pin DIP, SOIC-8, widebody packages
Strobable output (single channel products only)
Safety approval
– UL recognized – 3750 Vrms for 1 minute and
5000 Vrms for 1 minute per UL1577 CSA approved
(500
A good PCB layout for HCPL-2601-300E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce noise and electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
To minimize EMI and RFI, use a metal shield around the device, keep the input and output circuits separate, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
To troubleshoot common issues, check the input voltage and current, verify the output voltage and current, and ensure that the device is operated within its recommended specifications. Also, check for any signs of physical damage or overheating.
When handling and using HCPL-2601-300E, follow standard electrostatic discharge (ESD) precautions, avoid touching the device pins, and ensure that the device is properly soldered and mounted to prevent mechanical stress.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-2601-300E Overview

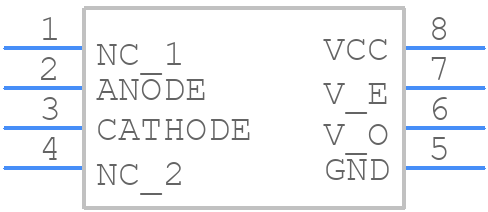

Use the download button to access the HCPL-2601-300E schematic symbol, PCB footprint, and 3D model.
