A good PCB layout for HCPL-2611-020E involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a 0.1uF capacitor between VCC and GND pins to filter out noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 100°C) and consider the derating of the device's current rating at higher temperatures. Additionally, ensure good thermal management, such as using a heat sink or thermal interface material, to keep the junction temperature within the recommended range.
The HCPL-2611-020E requires a differential input signal with a minimum amplitude of 200mV. It's recommended to use a signal conditioning circuit, such as a voltage divider or an op-amp, to ensure the input signal meets the required amplitude and common-mode voltage range.
To troubleshoot issues with the HCPL-2611-020E, start by verifying the input signal amplitude and frequency, and ensuring the device is properly powered. Check the output voltage and current, and verify that the output is not overloaded. If issues persist, try replacing the device or consulting the datasheet and application notes for further guidance.
The HCPL-2611-020E is rated for up to 20kV/μs common-mode transient immunity, making it suitable for high-voltage applications. However, it's essential to ensure the device is properly isolated and protected from overvoltage and overcurrent conditions. Consult the datasheet and application notes for specific guidance on using the HCPL-2611-020E in high-voltage applications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-2611-020E Overview

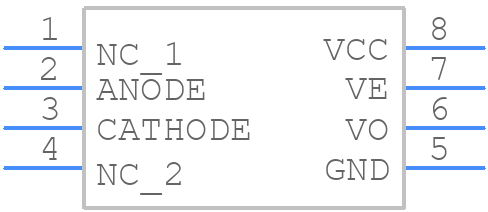

Use the download button to access the HCPL-2611-020E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
