A good PCB layout for HCPL-2611 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a 0.1uF capacitor between VCC and GND pins to filter out noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 100°C) and consider the derating of the device's current transfer ratio (CTR) with temperature. Additionally, ensure proper thermal management, such as using a heat sink or thermal interface material, to keep the junction temperature within the recommended range.
The recommended input signal amplitude for HCPL-2611 is typically between 10mV to 10V, and the frequency range is up to 10MHz. However, the optimal input signal amplitude and frequency may vary depending on the specific application and noise environment.
To minimize EMI when using HCPL-2611, use a shielded cable for the input signal, keep the input and output circuits separate, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, ensure proper grounding and use a metal enclosure to shield the device.
The typical propagation delay of HCPL-2611 is around 100ns. This delay should be considered in system design, especially in high-speed applications, to ensure proper synchronization and timing of signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-2611 Overview

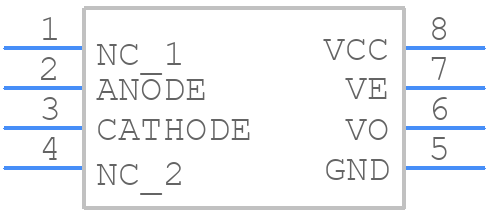

Use the download button to access the HCPL-2611 schematic symbol, PCB footprint, and 3D model.
