Broadcom recommends a PCB layout with a solid ground plane, minimal track length, and a 50-ohm transmission line for the output stage to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range.
Common failure modes of HCPL-270L-500E include overvoltage, overcurrent, and excessive temperature. To mitigate these, ensure proper voltage regulation, current limiting, and thermal management. Additionally, follow recommended handling and storage procedures to prevent damage during manufacturing and shipping.
While HCPL-270L-500E is designed for isolated applications, it can be used in non-isolated applications with caution. Ensure that the input and output stages are properly biased and terminated to prevent unwanted voltage swings and oscillations. Additionally, follow proper PCB layout and grounding practices to minimize noise and EMI.
To troubleshoot issues with HCPL-270L-500E, start by verifying the input voltage, output load, and PCB layout. Use an oscilloscope to observe the output waveform and identify any anomalies. Check for proper termination, biasing, and decoupling. If issues persist, consult the datasheet and application notes or contact Broadcom support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-270L-500E Overview

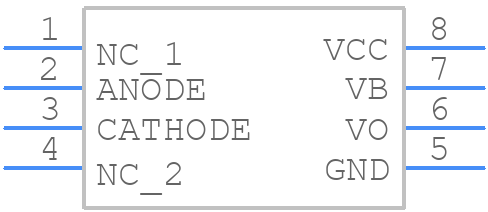

Use the download button to access the HCPL-270L-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
