HCPL-3101 - Avago Technologies

Description: MOSFET optocoupler,HCPL3101 41 pin DIP8

Download HCPL-3101 Model

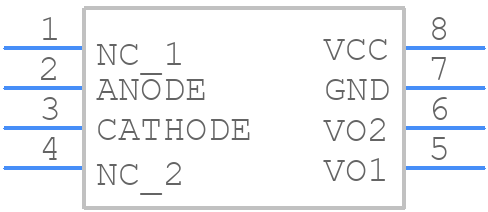

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HCPL-3101 - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 pin dip-ren1
click to zoom
3D Models
HCPL-3101 - Avago Technologies  - 3D model - Dual-In-Line Packages - 8 pin dip-ren1
click to zoom

HCPL-3101 Details

  • Manufacturer Part Number:

    HCPL-3101

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    0

  • Forward Current-Max:

    0.016 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e0

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -25 °C

  • Power Dissipation-Max:

    0.5 W

  • Response Time-Nom:

    2e-7 ns

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HCPL-3101 Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL-3101 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the cable away from noise sources.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range.
  • Common failure modes of HCPL-3101 include overvoltage, overcurrent, and excessive temperature. To mitigate these, ensure that the device is operated within its recommended specifications, use proper voltage regulation, and provide adequate heat sinking and thermal management.
  • To troubleshoot issues with HCPL-3101, start by verifying the input signal and power supply voltage. Check for proper PCB layout, ensure that the device is operated within its recommended specifications, and use an oscilloscope to analyze the output signal.
  • Yes, the HCPL-3101 can be used in a high-noise environment. To ensure reliable operation, use proper shielding, filtering, and grounding techniques. Additionally, consider using a common-mode choke or a ferrite bead to reduce electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCPL-3101 Overview

Use the download button to access the HCPL-3101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-, or try a keyword search, such as Optocoupler
