HCPL-3140-300E - Avago Technologies

Description: 600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing, Wide VCC operating range 10V to 30V, –40°C to 100°C

Download HCPL-3140-300E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

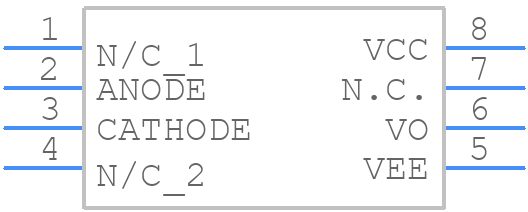

HCPL-3140-300E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HCPL-3140-300E - Avago Technologies PCB footprint - Other - Other - 300 mil DIP-8_2026
click to zoom

HCPL-3140-300E Details

  • Manufacturer Part Number:

    HCPL-3140-300E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.012 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Supply Voltage-Min:

    10 V

  • Terminal Finish:

    Tin (Sn)

HCPL-3140-300E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HCPL-3140-300E involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a 0.1uF capacitor between the VCC and GND pins to filter out noise.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range of -40°C to 100°C. Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device.
  • The maximum allowable voltage on the input pins of the HCPL-3140-300E is 5.5V. Exceeding this voltage can cause damage to the device.
  • The HCPL-3140-300E is designed for low-frequency applications up to 10 kHz. Using it in high-frequency applications may result in reduced performance and reliability. For high-frequency applications, consider using a different optocoupler or consulting with a Broadcom engineer.
  • To troubleshoot issues with the HCPL-3140-300E, start by verifying the input signal, checking for proper power supply voltage, and ensuring correct PCB layout. If issues persist, consult the datasheet and application notes or contact Broadcom support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCPL-3140-300E Overview

Use the download button to access the HCPL-3140-300E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-, or try a keyword search, such as Optocoupler
