The recommended PCB layout for HCPL-3140 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the input and output traces. It's also recommended to use a 0.1uF bypass capacitor between VCC and GND pins.
To ensure reliable operation of HCPL-3140 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range (−40°C to 100°C).
The maximum allowable common-mode transient immunity for HCPL-3140 is 10kV/μs, which means it can withstand common-mode transients up to 10kV with a rise time of 1μs.
While HCPL-3140 is primarily designed for low-frequency applications, it can be used for high-frequency applications up to 25MHz. However, the device's performance may degrade at higher frequencies, and additional filtering or signal conditioning may be required.
To troubleshoot issues with HCPL-3140, start by verifying the input signal integrity, checking the power supply voltage, and ensuring proper PCB layout and routing. Use an oscilloscope to monitor the input and output signals, and consult the datasheet for specific troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-3140 Overview

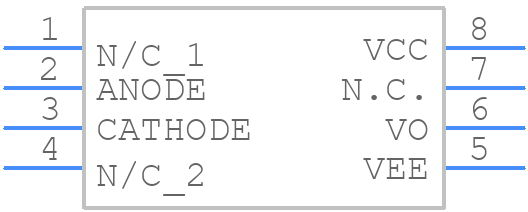

Use the download button to access the HCPL-3140 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
