A good PCB layout for HCPL-3180 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a 0.1uF capacitor between VCC and GND pins to filter out noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (−40°C to 100°C) and consider the derating of the device's current rating at higher temperatures. Additionally, ensure good thermal management, such as using a heat sink or thermal pad, to keep the junction temperature within the recommended range.
The HCPL-3180 requires a differential input signal with a minimum amplitude of 200mV. It's recommended to use a signal conditioning circuit, such as a voltage divider or an op-amp, to ensure the input signal is within the recommended range and to provide a common-mode voltage of 2.5V.
To troubleshoot issues with the HCPL-3180, start by verifying the input signal amplitude and frequency, and ensure the device is properly powered. Check the output voltage and current, and verify that the output is not overloaded. If issues persist, check the PCB layout and ensure that the device is properly soldered and not damaged.
Yes, the HCPL-3180 can be used in high-frequency applications, but it's essential to consider the device's bandwidth (10MHz) and ensure that the input signal frequency is within the recommended range. Additionally, consider the device's propagation delay (100ns) and ensure that it does not affect the overall system performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-3180 Overview

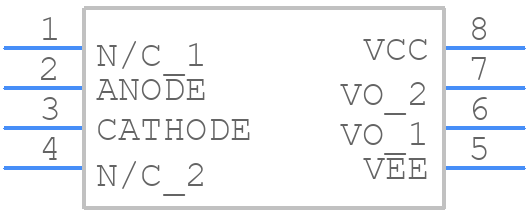

Use the download button to access the HCPL-3180 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
