A good PCB layout for the HCPL-3760-000E involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
The recommended input signal conditioning for the HCPL-3760-000E involves using a series resistor and a capacitor to filter out high-frequency noise and ensure a clean input signal. The values of the resistor and capacitor depend on the specific application and signal frequency.
To troubleshoot common issues with the HCPL-3760-000E, start by checking the input signal quality, ensuring that it's within the recommended specifications. Then, verify that the device is properly powered and that the output load is within the recommended range. If issues persist, check for PCB layout issues, such as signal coupling or electromagnetic interference.
When working with the HCPL-3760-000E, it's essential to follow proper safety precautions, such as wearing an anti-static wrist strap, using an anti-static mat, and avoiding touching the device's pins or exposed components. Additionally, ensure that the device is properly powered down before making any connections or repairs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-3760-000E Overview

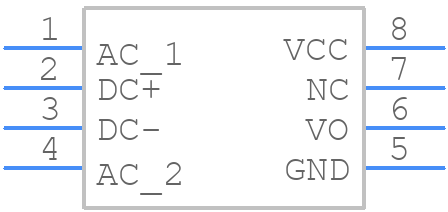

Use the download button to access the HCPL-3760-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
