A good PCB layout for HCPL-4506 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the cable away from noise sources.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device away from heat sources. Additionally, consider using a thermally enhanced package option, such as the HCPL-4506-000E, which is designed for high-reliability applications.
The recommended input signal amplitude for the HCPL-4506 is typically between 10 mV to 10 V, and the frequency range is up to 10 MHz. However, the specific input signal requirements may vary depending on the application, so it's essential to consult the datasheet and application notes for more information.
To troubleshoot common issues with the HCPL-4506, start by checking the input signal quality, ensuring it's within the recommended amplitude and frequency range. Verify that the power supply voltage is within the specified range, and check for any signs of overheating. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Broadcom Limited's technical support if necessary.
Yes, the HCPL-4506 can be used in high-voltage applications, but it's essential to take precautions to ensure safe operation. Ensure that the input signal is properly isolated, and consider using a voltage limiter or surge protector to prevent overvoltage conditions. Additionally, follow proper PCB layout and thermal management practices to prevent electrical overstress and thermal runaway.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-4506 Overview

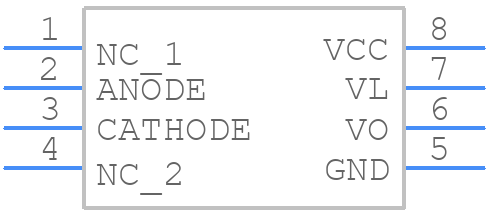

Use the download button to access the HCPL-4506 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as Optocoupler
