A good PCB layout for HCPL-4562-000E involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the input traces. It's also recommended to use a 0.1uF capacitor between VCC and GND pins to filter out noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range of -40°C to 100°C. Additionally, ensure good thermal management, such as using a heat sink or thermal pad, and avoid exceeding the maximum junction temperature of 150°C.
The recommended input signal amplitude for HCPL-4562-000E is 10mA to 20mA, and the frequency range is up to 10Mbps. However, the specific input signal requirements may vary depending on the application, so it's essential to consult the datasheet and application notes for more information.
To troubleshoot common issues with HCPL-4562-000E, start by verifying the input signal amplitude and frequency, and ensure that the device is properly powered. Check for any noise or interference on the input signal, and verify that the output load is within the recommended range. If issues persist, consult the datasheet and application notes for more troubleshooting guidance.
Yes, HCPL-4562-000E can be used in a galvanically isolated interface. Key considerations include ensuring that the input and output circuits are properly isolated, using a suitable isolation voltage, and following the recommended PCB layout and creepage distance guidelines to maintain isolation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-4562-000E Overview

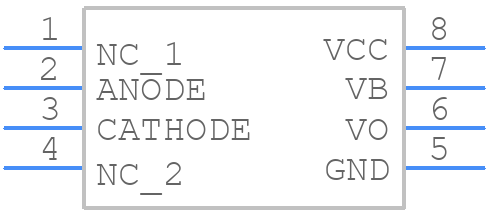

Use the download button to access the HCPL-4562-000E schematic symbol, PCB footprint, and 3D model.
