HCPL-4701-000E - Avago Technologies

Description: BROADCOM - HCPL-4701-000E - 光电耦合器, Darlington Output, 1通道, DIP, 8 引脚, 10 mA, 3.75 kV, 800 %

Download HCPL-4701-000E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

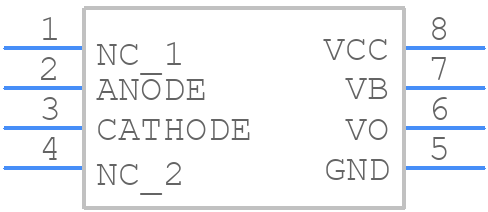

HCPL-4701-000E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HCPL-4701-000E - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP (300 Mil)-ren1
click to zoom
3D Models
HCPL-4701-000E - Avago Technologies - 3D model - Dual-In-Line Packages - 8-Pin DIP (300 Mil)-ren1
click to zoom

HCPL-4701-000E Details

  • Manufacturer Part Number:

    HCPL-4701-000E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, DIP-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    8

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    500%

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.23 W

  • Response Time-Max:

    0.00009 s

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

HCPL-4701-000E Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL-4701-000E involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce noise and electromagnetic interference (EMI).
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
  • The recommended input signal conditioning for HCPL-4701-000E involves using a series resistor and capacitor to filter out high-frequency noise and ensure a clean input signal.
  • To troubleshoot common issues with HCPL-4701-000E, check the input signal quality, ensure proper power supply decoupling, and verify that the device is operated within its specified voltage and temperature ranges.
  • Yes, HCPL-4701-000E is suitable for use in high-reliability or safety-critical applications, as it is designed to meet the requirements of IEC 60747-5-5 and has a high level of immunity to electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCPL-4701-000E Overview

Use the download button to access the HCPL-4701-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-, or try a keyword search, such as Optocoupler
