A good PCB layout for HCPL-5200 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the junction temperature below 125°C.
The recommended input signal conditioning for the HCPL-5200 involves using a series resistor and a capacitor to filter out high-frequency noise and ensure a clean input signal. The values of the resistor and capacitor depend on the specific application and signal frequency.
To troubleshoot common issues with the HCPL-5200, check the input signal quality, ensure proper power supply decoupling, and verify that the output load is within the recommended range. Also, check for any signs of overheating or physical damage to the device.
Yes, the HCPL-5200 can be used in high-voltage applications, but it's essential to ensure that the device is properly isolated and that the voltage ratings are not exceeded. Use a suitable isolation transformer, and follow proper safety precautions when working with high voltages.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-5200 Overview

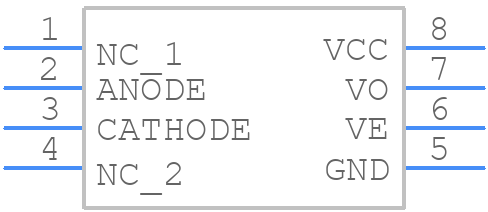

Use the download button to access the HCPL-5200 schematic symbol and PCB footprint.
