A good PCB layout for HCPL-J314-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
HCPL-J314-000E has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device, such as using an anti-static wrist strap or mat, and storing the device in an anti-static bag.
HCPL-J314-000E is rated for up to 3.75 kVrms isolation voltage, but it's not recommended for use in high-voltage applications exceeding this rating. For higher voltage applications, consider using a different isolation amplifier or consulting with a Broadcom Limited representative.
To troubleshoot common issues with HCPL-J314-000E, check the input signal amplitude and frequency, ensure proper power supply decoupling, and verify that the device is operated within its specified temperature range. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL-J314-000E Overview

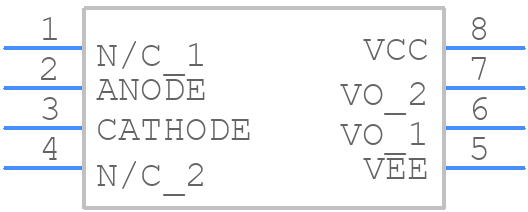

Use the download button to access the HCPL-J314-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL-,
or try a keyword search, such as MOSFET Drivers
