HCPL0453 - onsemi

Description: approval pending for HCPL0530/0531/0453; High speed Ð 1 MBit/s; U.L. recognized (File # E90700); VDE0884 recognized (file#136616); ordering option V, e.g., HCPL0500V; 15kV/µs minimum common mode transient immunity at VCM =1500V (HCPL0453/0534); Guaranteed performance over temperature: 0°C to 70°C; BSI recognized (file# 8661, 8662); Open collector output; HCPL0452/0500/0501 only

Download HCPL0453 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

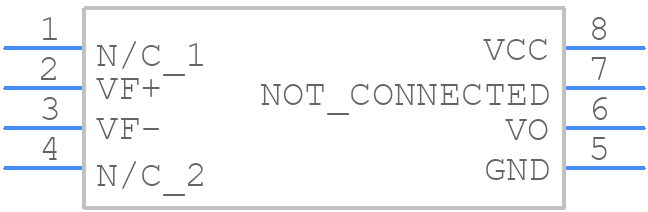

HCPL0453 - onsemi - PCB symbol
click to zoom
PCB Footprints
HCPL0453 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOIC
click to zoom
3D Models
HCPL0453 - onsemi - 3D model - Small Outline Packages - 8-Lead SOIC
click to zoom

HCPL0453 Details

  • Manufacturer Part Number:

    HCPL0453

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    15%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    8e-7 s

  • Response Time-Nom:

    3e-7 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HCPL0453 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HCPL-0453 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input and output connections.
  • To ensure proper isolation, make sure the input and output circuits are galvanically isolated, and the device is not connected to any common ground or power supply. Also, ensure that the creepage and clearance distances between the input and output pins meet the required standards.
  • The maximum allowable voltage across the isolation barrier of the HCPL-0453 is 2.5 kVrms. Exceeding this voltage may compromise the isolation and safety of the device.
  • The LED current in the HCPL-0453 should be limited to 10 mA to ensure reliable operation. Exceeding this current may reduce the device's lifespan or cause it to fail.
  • The recommended operating temperature range for the HCPL-0453 is -40°C to 100°C. Operating the device outside this range may affect its performance and reliability.
