HCPL0500 - onsemi

Description: approval pending for HCPL0530/0531/0453; 15kV/µs minimum common mode transient immunity at VCM =1500V (HCPL0453/0534); VDE0884 recognized (file#136616); U.L. recognized (File # E90700); High speed Ð 1 MBit/s; BSI recognized (file# 8661, 8662); HCPL0452/0500/0501 only; Guaranteed performance over temperature: 0°C to 70°C; Open collector output; ordering option V, e.g., HCPL0500V

Download HCPL0500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

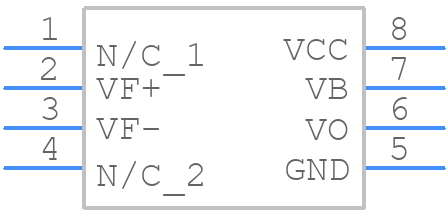

Symbol
HCPL0500 - onsemi - PCB symbol
click to zoom
PCB Footprints
HCPL0500 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOIC
click to zoom
3D Models
HCPL0500 - onsemi - 3D model - Small Outline Packages - 8-SOIC
click to zoom

HCPL0500 Details

  • Manufacturer Part Number:

    HCPL0500

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    751DZ

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    5%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.0000015 s

  • Response Time-Nom:

    5e-7 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HCPL0500 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HCPL-0500 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input and output connections.
  • To ensure proper isolation, make sure the input and output circuits are galvanically isolated, and the device is not connected to a common ground. Also, ensure that the creepage and clearance distances between the input and output pins meet the required standards.
  • The maximum allowable voltage across the input pins of the HCPL-0500 is ±1.4 kV peak. Exceeding this voltage can damage the device.
  • The LED current in the HCPL-0500 should be limited to 10 mA to ensure reliable operation. Exceeding this current can reduce the device's lifespan.
  • The recommended operating temperature range for the HCPL-0500 is -40°C to 100°C. Operating the device outside this range can affect its performance and reliability.
