A good PCB layout for HCPL-0534R2 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the input and output traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (-40°C to 100°C) and to provide adequate heat sinking. Additionally, consider using a thermal interface material between the device and the heat sink, and ensure that the PCB is designed to handle the thermal stresses.
The maximum allowable common-mode transient immunity for HCPL-0534R2 is 10 kV/μs. This means that the device can withstand common-mode transients up to 10 kV with a rise time of 1 μs without compromising its performance or reliability.
While HCPL-0534R2 is rated for up to 1 kV, it's possible to use it in high-voltage applications above 1 kV with proper design and precautions. However, this requires careful consideration of the device's electrical characteristics, PCB layout, and insulation requirements to ensure safe and reliable operation.
To troubleshoot issues with HCPL-0534R2, start by checking the input signal, power supply, and PCB layout. Verify that the input signal is within the recommended range and that the power supply is stable. Check for any signs of overheating, and ensure that the device is properly soldered and seated. If the issue persists, consider using an oscilloscope to analyze the input and output signals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL0534R2 Overview

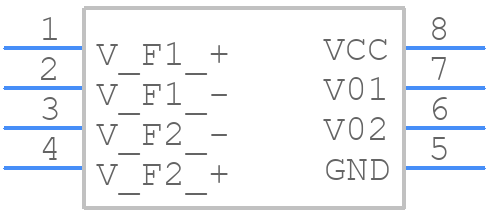

Use the download button to access the HCPL0534R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL0,
or try a keyword search, such as Optocoupler
