HCPL0600 - onsemi

Description: Strobable output (single channel devices); Fan-out of 8 over -40°C to +85°C; Superior CMR; VDE approval pending; Logic gate output; Very high speed-10 MBit/s; U.L. recognized (File # E90700); Wired OR-open collector; Compact SO8 package

Download HCPL0600 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

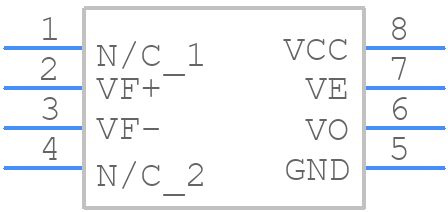

HCPL0600 - onsemi - PCB symbol
click to zoom
PCB Footprints
HCPL0600 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - HCPL0600
click to zoom
3D Models
HCPL0600 - onsemi - 3D model - Small Outline Packages - HCPL0600
click to zoom

HCPL0600 Details

  • Manufacturer Part Number:

    HCPL0600

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    751DZ

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.015 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Nom:

    5e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HCPL0600 Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output circuits separate, use a ground plane, and minimize the loop area of the signal traces. Additionally, use a shielded cable for the input signal and keep it away from the output circuit.
  • To ensure reliability, operate the HCPL-0600 within its recommended temperature range (-40°C to 100°C). Use a heat sink if the device is expected to operate at high temperatures for an extended period. Also, ensure good thermal conductivity between the device and the heat sink.
  • The maximum allowable voltage imbalance is ±1 kV. Exceeding this limit may cause the device to fail or malfunction.
  • While HCPL-0600 is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 25 kHz. However, the device's performance may degrade at higher frequencies due to increased power consumption and reduced common-mode rejection ratio (CMRR).
  • To protect the HCPL-0600 from EOS, use a voltage limiter or a transient voltage suppressor (TVS) at the input and output circuits. Additionally, ensure that the device is operated within its recommended voltage range and follow proper handling and storage procedures to prevent electrostatic discharge (ESD) damage.
