HCPL0601 - onsemi

Description: U.L. recognized (File # E90700); Compact SO8 package; Fan-out of 8 over -40°C to +85°C; VDE approval pending; Logic gate output; Wired OR-open collector; Superior CMR; Very high speed-10 MBit/s; Strobable output (single channel devices)

Download HCPL0601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

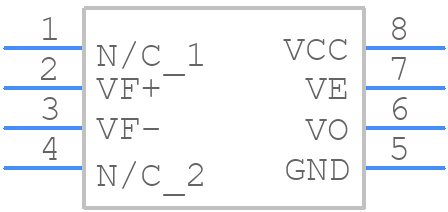

Symbol
HCPL0601 - onsemi - PCB symbol
click to zoom
PCB Footprints
HCPL0601 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - HCPL0601
click to zoom
3D Models
HCPL0601 - onsemi - 3D model - Small Outline Packages - HCPL0601
click to zoom

HCPL0601 Details

  • Manufacturer Part Number:

    HCPL0601

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.015 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Nom:

    5e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HCPL0601 Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL-0601 involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce noise and electromagnetic interference (EMI).
  • To ensure reliability in high-temperature applications, ensure that the device is operated within its recommended temperature range (-40°C to 100°C), and consider using a heat sink or thermal interface material to dissipate heat.
  • The maximum allowable voltage for the HCPL-0601 is 1.5 kV peak, which is the maximum voltage that can be applied between the input and output circuits without damaging the device.
  • To troubleshoot issues with the HCPL-0601, check the input voltage, input current, and output voltage to ensure they are within the recommended ranges. Also, verify that the device is properly connected and that there are no issues with the PCB layout or component placement.
  • The HCPL-0601 is suitable for high-frequency applications up to 25 kHz. However, the device's performance may degrade at higher frequencies due to internal capacitance and inductance. It's recommended to evaluate the device's performance in your specific application.
