HCPL062N - onsemi

Description: Logic gate output ; Wired OR-open collector ; U.L. recognized (File # E90700); Superior CMR – 25kV/µs minimum (1,000 volts common mode) ; Fixed threshold detector design minimizes thermal impact on switching times ; Compact SO8 package ; Very high speed – 10MBit/s

Download HCPL062N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

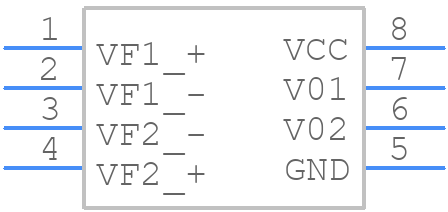

Symbol
HCPL062N - onsemi - PCB symbol
click to zoom
PCB Footprints
HCPL062N - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom
3D Models
HCPL062N - onsemi - 3D model - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom

HCPL062N Details

  • Manufacturer Part Number:

    HCPL062N

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.015 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Nom:

    9e-8 ns

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HCPL062N Frequently Asked Questions (FAQs)

  • A good PCB layout for HCPL-062N involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
  • The maximum allowable voltage for the HCPL-062N input is 1.4V, exceeding which may cause damage to the device.
  • While HCPL-062N is suitable for high-frequency applications, its bandwidth is limited to around 10 MHz. For higher frequencies, consider using a different optocoupler or a specialized high-frequency optocoupler.
  • To troubleshoot issues with HCPL-062N, check the input voltage and current, ensure proper PCB layout and routing, and verify that the device is operated within its recommended specifications. Use an oscilloscope to measure the input and output waveforms to identify any anomalies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HCPL062N Overview

Use the download button to access the HCPL062N schematic symbol, PCB footprint, and 3D model.
