Description:Superior CMR-10 kV/µs; High common mode noise line receiver; Telephone ring detector; VDE 0884 recognized (file #136616); µP bus isolation; BSI recognized (file# 8661, 8662); Low current - 0.5 mA; Current loop receiver; Digital logic ground isolation; EIA-RS-232C line receiver; U.L. recognized (file# E90700); CTR guaranteed 0-70°C; Superior CTR-2000%; HCPL-0700/0701 only
The recommended PCB layout for HCPL-0700 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure reliable operation of HCPL-0700 in high-temperature environments, it is recommended to derate the device's current rating, use a heat sink, and ensure good thermal conductivity between the device and the PCB. Additionally, the device should be operated within its specified temperature range.
The maximum allowable voltage across the input pins of HCPL-0700 is ±1.4 kV peak. Exceeding this voltage can damage the device.
To troubleshoot issues with HCPL-0700, check the input signal, ensure proper power supply voltage, verify the output load, and check for noise or interference on the input or output lines. Also, ensure that the device is operated within its specified temperature range.
HCPL-0700 is designed for low-frequency applications up to 25 kHz. Using it in high-frequency applications may result in reduced performance, increased power consumption, or even device failure. For high-frequency applications, consider using a different optocoupler or a specialized high-frequency optocoupler.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL0700 Overview

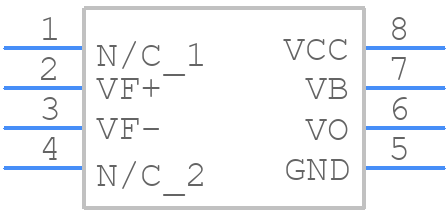

Use the download button to access the HCPL0700 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL0,
or try a keyword search, such as Optocoupler
