Description:Superior CMR-10 kV/µs; High common mode noise line receiver; Telephone ring detector; VDE 0884 recognized (file #136616); µP bus isolation; BSI recognized (file# 8661, 8662); Low current - 0.5 mA; Current loop receiver; Digital logic ground isolation; EIA-RS-232C line receiver; U.L. recognized (file# E90700); CTR guaranteed 0-70°C; Superior CTR-2000%; HCPL-0700/0701 only
The recommended PCB layout for HCPL-0700R2 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the input and output pins should be routed away from each other to minimize capacitive coupling.
To ensure reliable operation of HCPL-0700R2 in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its recommended temperature range of -40°C to 100°C.
The maximum allowable common-mode transient immunity for HCPL-0700R2 is 10 kV/μs. This means that the device can withstand common-mode transients up to 10 kV/μs without compromising its performance or reliability.
Yes, HCPL-0700R2 is designed for high-voltage isolation applications. It provides a high isolation voltage of 2.5 kVrms and can withstand high common-mode voltages. However, it is essential to follow proper design and layout practices to ensure reliable operation and to meet safety standards such as IEC 61010-1.
To troubleshoot issues with HCPL-0700R2, start by checking the input and output signals using an oscilloscope. Verify that the input signal is within the recommended range and that the output signal is not distorted or clipped. Check the power supply voltage and ensure that it is within the recommended range. Also, check for any signs of overheating or physical damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HCPL0700R2 Overview

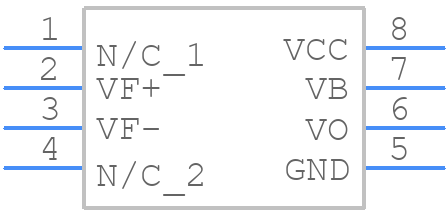

Use the download button to access the HCPL0700R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HCPL0,
or try a keyword search, such as Optocoupler
